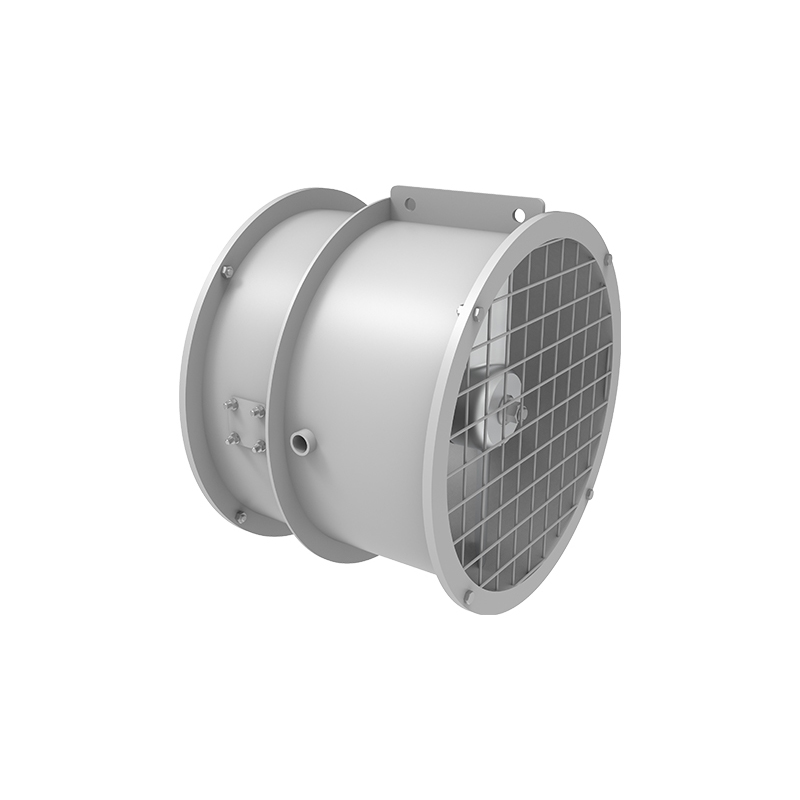

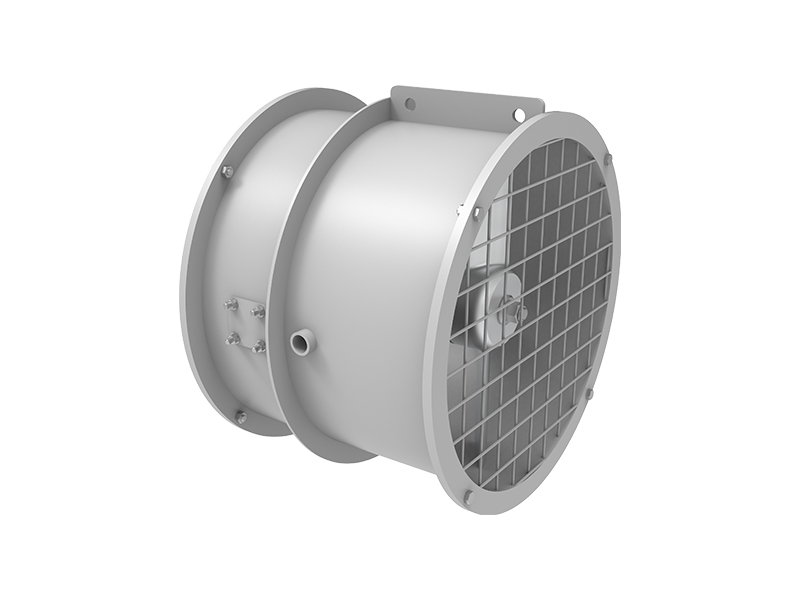

CC20 Clemcorp Axial Fans

The CC20 is an air driven fan developed for use in a variety of applications. The CC20 can be tted with optional misting arrangements to suit any application.

Key Points

  1. Air Driven Axial Fan Design
  2. Can be used for misting/dust suppression applications
  3. Fixed Pitch Cast Impellers
  4. Single Stage Operation
  5. Flow Rates from 6m3/s to 0.7m3/s
  6. Pressures from 500Pa to 1.7kPa
  7. Air Consumption 154CFM @ 70PSI Max
PDF Product Guide for CC20 Product Guide CC20 Download PDF
All Fans & Accessories

  • Specifications

    DescriptionFan SpeedStagesPeak PressureMax VolumeBlade AnglesMotor Size
    CC20 Air Driven Fan - 1 1.75kPA 6m3/s  Fixed N/A

    Impeller Specifications

    Impeller SpecificationsDescription
    Impeller Material AC601 Aluminium Alloy
    Design Fixed Pitch
    Casting Method Sand Casting
    Finish Bare Aluminium, Epoxy Coatings on Request

    Fan Specifications

    Fan SpecificationsDescription
    Fan Design Single Stage
    Fan Stages Single Stage Con guration
    Motor Power Air Driven
    Internal Diameter 507mm
    Casing Thickness 3mm
    Casing Finish HD Galvanising, Paint Finish on Request
    Flange OD 579mm
    Hole PCD 546mm
    Number of Holes 3
    Hole Size 17mm
    Hole Orientation Offset from Top Dead Center
    Lifting Mechanism Single Point
    Serial Numbering Laser Cut Stainless Steel Plates
    Air Requirements 154CFM @ 70 PSI

  • Downloads

    PDF Download 0020 506 REV2 CC20 Download PDF PDF Download 0020 528 REV2 CC20 Download PDF

    Legend

    Key Description Key Description
    CC•••• Fan Model ••kW Motor Size
    ••P Motor Speed ••V Voltage
    ••S Number of Stages IC Inlet Cone
    SIL Silencer VTA Vent Tube Adaptor
    IN Inlet OUT Outlet
    MS Meshed Screen
    CC••••
    Fan Model
    ••kW
    Motor Size
    ••P
    Motor Speed
    ••V
    Voltage
    ••S
    Number of Stages
    IC
    Inlet Cone
    SIL
    Silencer
    VTA
    Vent Tube Adaptor
    IN
    Inlet
    OUT
    Outlet
    MS
    Meshed Screen
