CC1800 Clemcorp Axial Fans

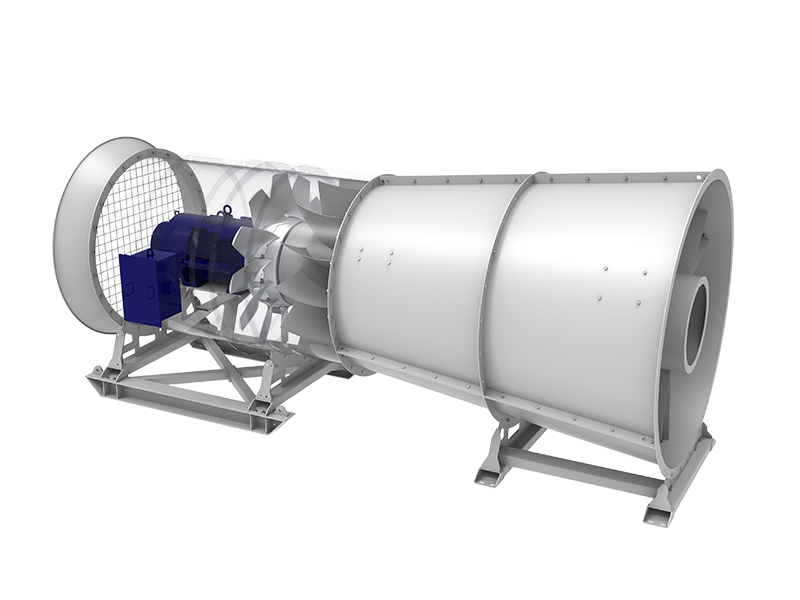

The newly designed CC1800 Axial Fans are designed specifically for booster applications. Available as single or twin stage configurations with flow rates up to 105m3/s and pressures up to 4kPA per stage. The CC1800 is a variable pitch design capable of a wide range of duties and applications.

Key Feature

  1. Co-Rotating Design
  2. Booster Fan Applications
  3. Variable Pitch Blade Adjustment
  4. Machined Impeller Track
  5. Modular Single or Twin Stage Configurations
  6. Flow Rates from 35m3/s to 105m3/s
  7. Pressures from 500Pa to 4000Pa per Stage
PDF Product Guide for CC1800 Product Guide CC1800 Download PDF
All Fans & Accessories

  • Product Specifications

    DescriptionFan SpeedNumber of BladesBlade AnglesMotor Size
    CC1800Mk1 Axial Booster Fan 1495RPM 12 42-57 Degrees 160kW to 400kW
      1495RPM 6 42-62 Degrees 110kW to 350kW
      990RPM 12 62-72 Degrees 150kW to 220kW

    Fan Specification

    Fan SpecificationDescription
    Fan Design Co-Rotating
    Fan Stages Single or Twin Stage Configurations
    Motor Power 110kW to 300kW
    Internal Diameter 1800mm
    Casing Thickness 8mm with 20mm Machined Impeller Track
    Casing Finish Galvanising
    Flange OD 1986mm
    Hole PCD 1900mm
    Number of Holes 24
    Hole Size 22mm
    Hole Orientation Offset from Top Dead Center
    Lifting Mechanism Full Length Lifting Bar with 40mm Holes
    Serial Numbering Laser Cut Stainless Steel Plates
    Airflow And Rotor Direction PolyCarbonate Arrows on Casings

    Impeller Specification

    Impeller SpecificationDescription
    Blade Material AC601 Aluminium Alloy or SG Iron
    Hub Material SG Iron Cast Hub
    Design High Efficiency Variable Pitch Castings
    Casting Method Sand and Gravity Feed Casting
    Finish Bare Metal, Epoxy Coatings on Request

    Motor Specification

    Motor SpecificationDescription
    Windings H Class Custom Specfication
    Insulation Double H Class Insulation
    Efficiency >94%
    Voltage 415v, 525v, 690v and 1000v
    Frequency 50hz / 60hz (6P Opertation Only @ 60Hz)
    Poles 4P, 6P
    Speed 990RPM / 1475RPM
    Frame D280 / D350
    Mounting Foot Mounting
    Leads 1m Extended From Casing
    Terminal Box External on Fan Casing
    Terminal Box Protection Steel Guard around Box

  • Downloads

    No downloads available

    Legend

    Key Description Key Description
    CC•••• Fan Model ••kW Motor Size
    ••P Motor Speed ••V Voltage
    ••S Number of Stages IC Inlet Cone
    SIL Silencer VTA Vent Tube Adaptor
    IN Inlet OUT Outlet
    MS Meshed Screen
