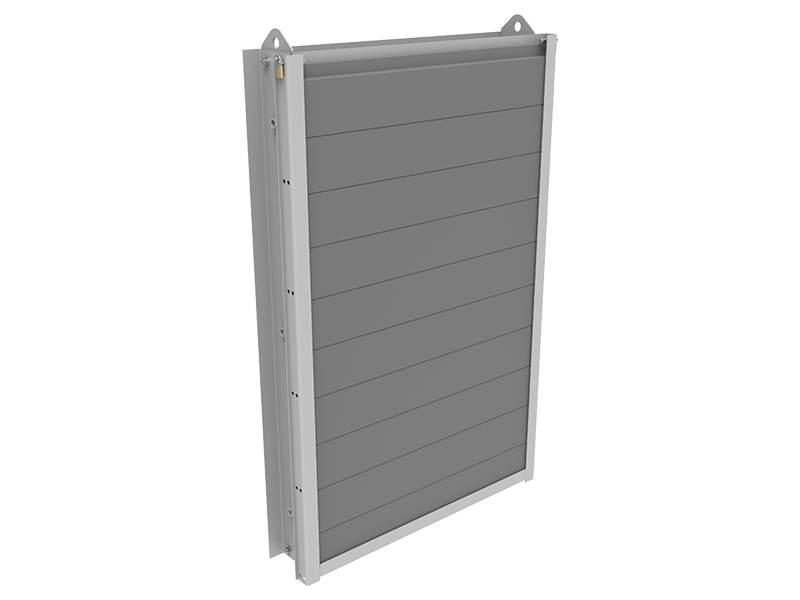

Drop Board Regulators

Clemcorp Drop Board Regulators (DBR’s) are the most technologically advanced and feature rich board type ventilation control device on the market. Our proprietary interlocking rotational moulded HDPE boards provide virtually perfect sealing, and as such our design is the lowest leakage DBR available. Being constructed purely from virgin HDPE they are durable and robust, impervious to corrosion and water. Furthermore they are light, easy to handle and contain no sharp edges - which is a vast safety improvement over traditional wooden or steel boards. We have modular designs in multiple size configurations

Key Feature

  1. HDPE Rotational Moulded Proprietary Board Design
  2. Locking pin and Padlock Arrangement to Prevent Unauthorised Regulator Changes
  3. Captive Nuts for Threaded Rod Inserts
  4. Modular Galvanised Frames
  5. Low Leakage DBR
  6. C-Section Frame and Base Cutouts for Hold Down Bolts Enables Excellent Keying Into the Structural Wall
  7. Rated Lifting Lugs
All Ventilation Control Devices
  • Product Specifications

    DescriptionProduct CodeInternal DimensionsWeight
    Single Section DBR DBR-003 265mm x 1220mm x 1950mm 135kg
    Double Section DBR DBR-011 265mm x 2790mm x 1950mm/td> 254kg
    Triple Section DBR DBR-019 265mm x 3010mm x 2770mm 401kg
    Triple Section DBR (Extended Height) DBR-020 265mm x 3010mm x 3184mm 450kg
