CC3080 Clemcorp Axial Fans

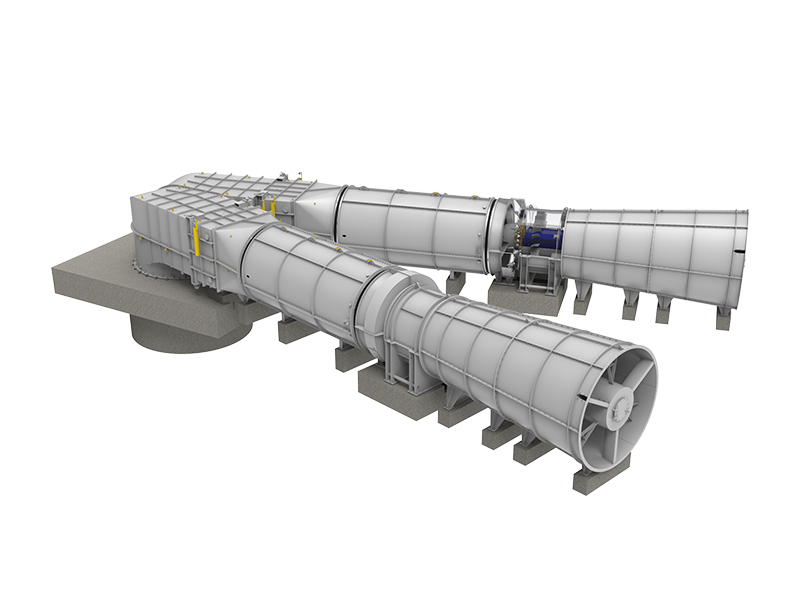

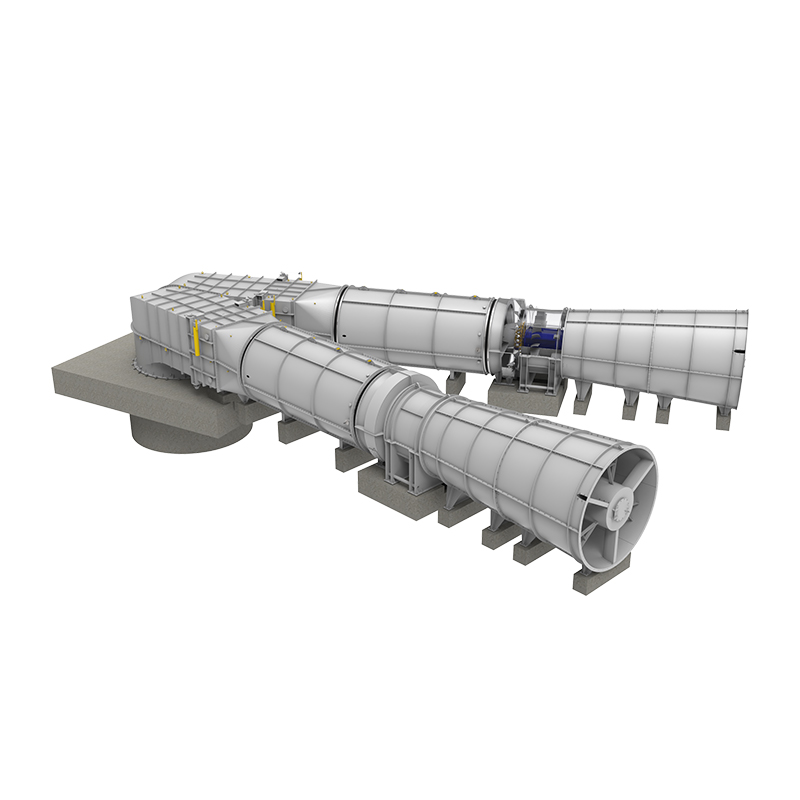

The CC3080 model is currently the largest diameter Axial fan manufactured by Clemcorp Australia.  Designed specifically to suit the unique rigours of underground metalliferous mine ventilation, the CC3080’s robust structure operates efficiently anywhere in the World.   The harshest conditions in Australia are no match for the CC3080 making it an extremely reliable and hard working Axial fan.  It can safely operate at, up to, 745RPM operating speed allowing the fan to generate high pressures and volumes with a variety of hub sizes.

Key Points

  1. Suitable for Horizontal or Vertical Applications
  2. Fully supported swing away inspection hatches, nose and diffuser fairings
  3. Adjustable blade pitch and blade solidity to suit a wide range of duties
  4. Fan Total Efficiency up to 88%
  5. Flow rates from 200m^3/s to 400m^3/s
  6. Single stage pressures up to 4kPa
PDF Product Guide for CC3080 Product Guide CC3080 Download PDF
All Fans & Accessories

  • Product Specifications

    DescriptionFan SpeedNumber of BladesBlade AnglesMotor Size
    CC3080Mk1 Primary Fan 745PRM (Max) 24 45-65 Degrees 450kW to 1300kW
      745RPM (Max) 12 45-65 Degrees 450kW to 950kW

    Fan Specification

    Fan SpecificationDescription
    Fan Design Vane Axial
    Fan Stages Single or Twin Stage Configurations
    Motor Power 450kW to 1300kW
    Internal Diameter 3080mm
    Casing Thickness 12mm with 25mm Machined Impeller Track
    Casing Finish Painted Interzone 954 Paint Finish on Request
    Hole Orientation Offset from Top Dead Center
    Lifting Mechanism Rated Lifting Points
    Serial Numbering Laser Cut Stainless Steel Plates
    Airflow And Rotor Direction PolyCarbonate Arrows on Casings

    Impeller Specification

    Impeller SpecificationDescription
    Blade Material AC601 Aluminium Alloy, SG Iron or SAF2205 Duplex Stainless Steel
    Hub Material AS350 Fabricated Steel
    Design High Efficiency Variable Pitch Castings
    Casting Method Sand and Gravity Feed Casting
    Finish Bare Metal, Epoxy Coatings on Request

    Motor Specification

    Motor SpecificationDescription
    Windings F Class or H Class Custom Specfication
    Insulation Customer Specification
    Efficiency >94%
    Voltage 415v, 525v, 690v, 1000v and 3300v
    Frequency 50hz or 60hz
    Poles 8P, 10P
    Speed 745RPM (Max)
    Frame Up to D630 Frame
    Mounting Foot Mounting
    Leads Varies
    Terminal Box External on Fan Casing

  • Downloads

    Legend

    Key Description Key Description
    CC•••• Fan Model ••kW Motor Size
    ••P Motor Speed ••V Voltage
    ••S Number of Stages IC Inlet Cone
    SIL Silencer VTA Vent Tube Adaptor
    IN Inlet OUT Outlet
    MS Meshed Screen
