CC2650 Clemcorp Axial Fans

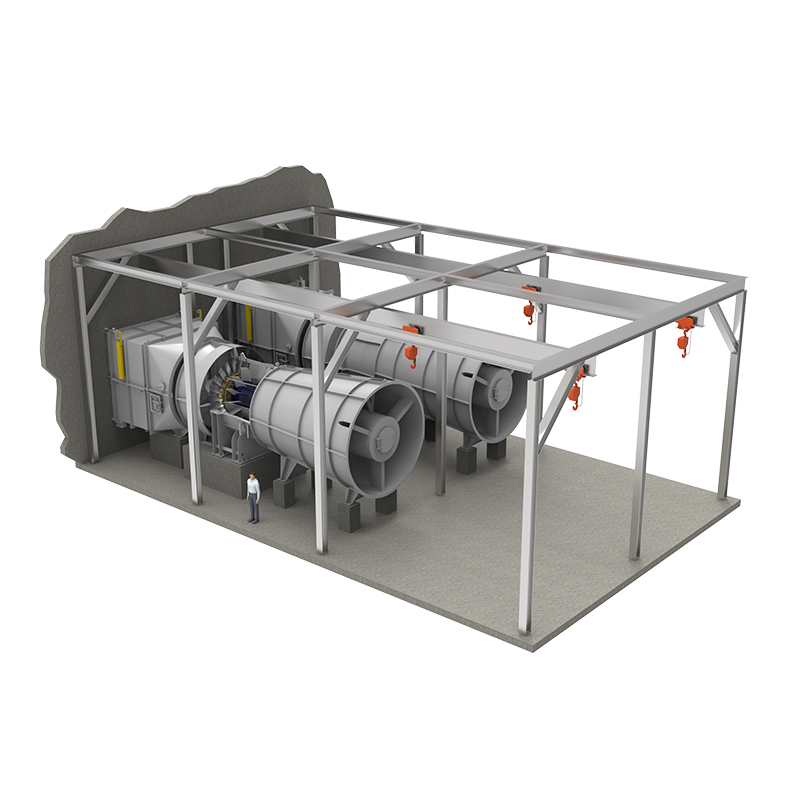

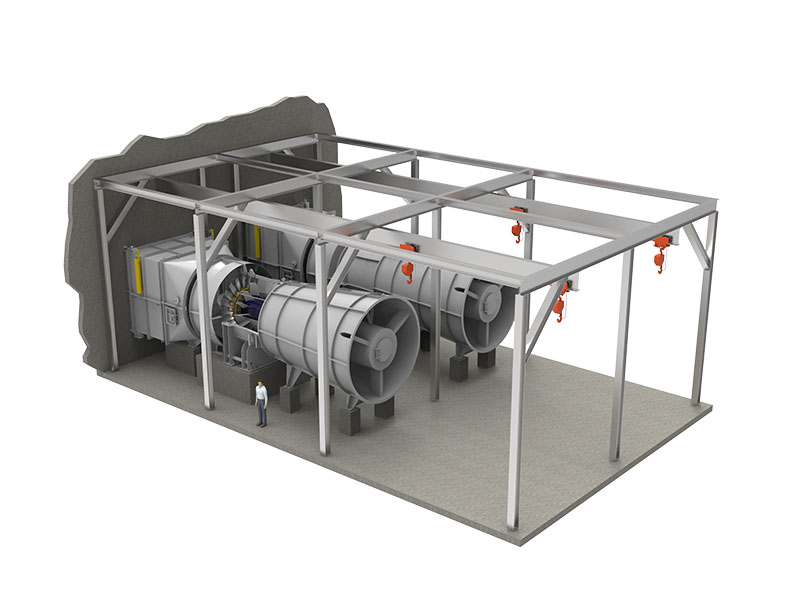

The CC2650 Axial Fan is one of the largest diameter axial fans manufactured by Clemcorp Australia. Designed specifically to suit the unique rigours of underground metalliferous mine ventilation, the CC2650’s robust structure operates efficiently anywhere in the World. No detail has been overlooked with this fan and every box possible has been ticked.  The CC2650 can safely run at up to 990RPM operating speed, allowing the fan to generate high pressures and volumes with a variety of hub sizes.

Key Points

  1. Suitable for Horizontal or Vertical Applications
  2. Fully supported swing away inspection hatches, nose and diffuser fairings
  3. Adjustable blade pitch and blade solidity to suit a wide range of duties
  4. Fan Total Efficiency up to 88%
  5. Flow rates from 100m^3/s to 210m^3/s
  6. Single stage pressures up to 7.5kPa
PDF Product Guide for CC2650 Product Guide CC2650 Download PDF
All Fans & Accessories

  • Product Specifications

    DescriptionFan SpeedNumber of BladesBlade AnglesMotor Size
    CC2650Mk1 Primary Fan 990PRM (Max) 22 (Max) 45-65 Degrees 250kW to 1800kW
      990RPM (Max) 11 45-65 Degrees 250kW to 1300kW

    Fan Specification

    Fan SpecificationDescription
    Fan Design Vane Axial
    Fan Stages Single or Twin Stage Configurations
    Motor Power 250kW to 1800kW
    Internal Diameter 2650mm
    Casing Thickness 12mm with 25mm Machined Impeller Track
    Casing Finish Painted Interzone 954 Paint Finish on Request
    Hole Orientation Offset from Top Dead Center
    Lifting Mechanism Rated Lifting Points
    Serial Numbering Laser Cut Stainless Steel Plates
    Airflow And Rotor Direction PolyCarbonate Arrows on Casings

    Impeller Specification

    Impeller SpecificationDescription
    Blade Material AC601 Aluminium Alloy, SG Iron or SAF2205 Duplex Stainless Steel
    Hub Material AS350 Fabricated Steel
    Design High Efficiency Variable Pitch Castings
    Casting Method Sand and Gravity Feed Casting
    Finish Bare Metal, Epoxy Coatings on Request

    Motor Specification

    Motor SpecificationDescription
    Windings F Class or H Class Custom Specfication
    Insulation Customer Spec
    Efficiency >94%
    Voltage 415v, 525v, 690v, 1000v and 3300v
    Frequency 50hz or 60hz
    Poles 6P, 8P
    Speed 745RPM, 990RPM
    Frame Up to D630 Frame
    Mounting Foot Mounting
    Leads Varies
    Terminal Box External on Fan Casing

  • Downloads

    Legend

    Key Description Key Description
    CC•••• Fan Model ••kW Motor Size
    ••P Motor Speed ••V Voltage
    ••S Number of Stages IC Inlet Cone
    SIL Silencer VTA Vent Tube Adaptor
    IN Inlet OUT Outlet
    MS Meshed Screen
    CC••••
    Fan Model
    ••kW
    Motor Size
    ••P
    Motor Speed
    ••V
    Voltage
    ••S
    Number of Stages
    IC
    Inlet Cone
    SIL
    Silencer
    VTA
    Vent Tube Adaptor
    IN
    Inlet
    OUT
    Outlet
    MS
    Meshed Screen
